Ti32R Meat Mincer

See All Meat Mincers

Features

Structured in cast alloy covered entirely in stainless steel
Output of up to 600kg per hour
Self-ventilated motor
Speed reducer with 4 oil-immersed gears made from hardened steel enclosed in an oil-tight gearcase
All the machine parts can easily be cleaned with a damp cloth
Grinding unit can be removed completely for easy cleaning
Stainless steel tray and hopper
On / Off switch protection with waterproof rubber cover
Supplied with 6mm extrusion plate
Additional mincing plates available
Available in single or three phase (special order)
CE Approved
Covered by Metcalfe 1-year warranty (parts & labour) and full after sales service

Specification

Accessories

Comparison

Brochure Spec Sheet Instructions Price List

Model	Ti32R
Product Code	5MMSTC32
Output per hour (Kg)	Up to 600
Extrusion Mouth (mm)	Ø 98
Insert Mouth (mm)	Ø 52
Phase (Ø)	1
Voltage (V)	230
Frequency (Hz)	50
Amp (A)	16.6
Power (kW / hp)	2.2 / 3.0
Power Connection	Hardwired
Turns (rpm)	140
Items Included	6mm extrusion plate
Optional Accessories	3mm extrusion plate (FM0413/3)
	3.5mm extrusion plate (FM0414/3.5)
	4.5mm extrusion plate (FM0502/4.5)
	6mm extrusion plate (FM0502/6)
	8mm extrusion plate (FM0502/8)
	Knife (FM0503)

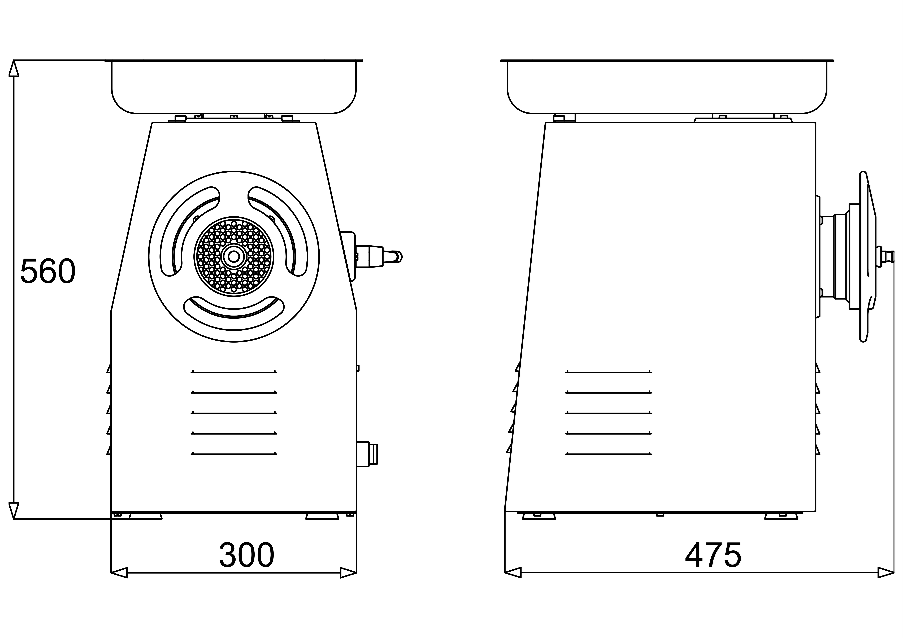

Overall Dimensions D x W x H (mm)	475 x 300 x 560
Net Weight (Kg)	52
Packed Dimensions D x W x H (mm)	620 x 430 x 650
Packed Weight (Kg)	55
Volume (m3)	0.173
Warranty	1 year

Accessory	Product Code	Price
Extrusion Plate – 3mm	FM0413/3	£88
Extrusion Plate – 3.5mm	FM0414/3.5	£78
Extrusion Plate – 4.5mm	FM0502/4.5	£74
Extrusion Plate – 6mm	FM0502/6	£74
Extrusion Plate – 8mm	FM0502/8	£74
Knife	FM0503	£43

Model	TS12R	TS22	Ti22R	Ti32R
Product Code	5MMTS12R	5MMTS22	5MMSTC22	5MMSTC32
Output per hour (Kg)	Up to 200	Up to 300	Up to 400	Up to 600
Extrusion Mouth (mm)	Ø 70	Ø 82	Ø 82	Ø 98
Insert Mouth (mm)	Ø 52	Ø 52	Ø 52	Ø 52
Phase (Ø)	1	1	1	1
Voltage (V)	230	230	230	230
Frequency (Hz)	50	50	50	50
Amp (A)	4.9	7.6	9.9	16.6
Power (kW / hp)	0.75 / 1.0	1.10 / 1.5	1.5 / 2.0	2.2 / 3.0
Power Connection	13amp plug	13amp plug	13amp plug	Hardwired
Turns (rpm)	200	140	140	140
Items Included	6mm extrusion plate	6mm extrusion plate	6mm extrusion plate	6mm extrusion plate
Optional Accessories	3mm extrusion plate (FM0407/3)	3mm extrusion plate (FM0410/3)	3mm extrusion plate (FM0410/3)	3mm extrusion plate (FM0413/3)
	3.5mm extrusion plate (FM0405/3.5)	3.5mm extrusion plate (FM0411/3.5)	3.5mm extrusion plate (FM0411/3.5)	3.5mm extrusion plate (FM0414/3.5)
	4.5mm extrusion plate (FM2131/4.5)	4.5mm extrusion plate (FM2219/4.5)	4.5mm extrusion plate (FM2219/4.5)	4.5mm extrusion plate (FM0502/4.5)
	6mm extrusion plate (FM2131/6)	6mm extrusion plate (FM2219/6)	6mm extrusion plate (FM2219/6)	6mm extrusion plate (FM0502/6)
	8mm extrusion plate (FM2131/8)	8mm extrusion plate (FM2219/8)	8mm extrusion plate (FM2219/8)	8mm extrusion plate (FM0502/8)
	Knife (FM2130)	Knife (FM2218)	Knife (FM2218)	Knife (FM0503)
Overall Dimensions D x W x H (mm)	370 x 220 x 440	440 x 240 x 510	450 x 260 x 530	475 x 300 x 560
Net Weight (Kg)	19	24	32	52
Packed Dimensions D x W x H (mm)	440 x 250 x 440	480 x 300 x 510	590 x 370 x 550	620 x 430 x 650
Packed Weight (Kg)	21	26.5	35	55
Volume (m3)	0.073	0.073	0.12	0.173
Warranty	1 year	1 year	1 year	1 year

Ti32R Meat Mincer

Commercial Meat Mincer
