TS12R Retro Meat Mincer

See All Meat Mincers

Next Product

Features

Retro style meat mincer offering excellent performance
Output of up to 200kg per hour
Grinding unit can be removed completely for easy cleaning
Stainless steel tray and hopper
On / Off switch protection with waterproof rubber cover
Supplied with 6mm extrusion plate
Additional mincing plates available
Available in single or three phase
CE Approved
Covered by Metcalfe 1-year warranty (parts & labour) and full after sales service

Specification

Accessories

Comparison

Brochure Spec Sheet Instructions Price List

Model	TS12R
Product Code	5MMTS12R
Output per hour (Kg)	Up to 200
Extrusion Mouth (mm)	Ø 70
Insert Mouth (mm)	Ø 52
Phase (Ø)	1
Voltage (V)	230
Frequency (Hz)	50
Amp (A)	4.9
Power (kW / hp)	0.75 / 1.0
Power Connection	13amp plug
Turns (rpm)	200
Items Included	6mm extrusion plate
Optional Accessories	3mm extrusion plate (FM0407/3)
	3.5mm extrusion plate (FM0405/3.5)
	4.5mm extrusion plate (FM2131/4.5)
	6mm extrusion plate (FM2131/6)
	8mm extrusion plate (FM2131/8)
	Knife (FM2130)

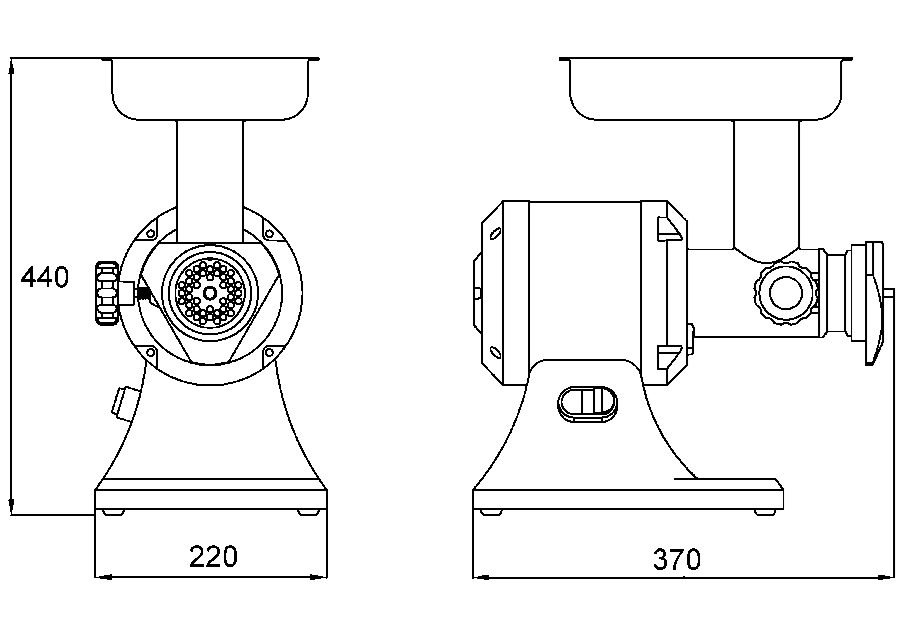

Overall Dimensions D x W x H (mm)	370 x 220 x 440
Net Weight (Kg)	19
Packed Dimensions D x W x H (mm)	440 x 250 x 440
Packed Weight (Kg)	21
Volume (m3)	0.073
Warranty	1 year

Accessory	Product Code	Price
Extrusion Plate – 3mm	FM0407/3	£52
Extrusion Plate – 3.5mm	FM0405/3.5	£52
Extrusion Plate – 4.5mm	FM2131/4.5	£52
Extrusion Plate – 6mm	FM2131/6	£52
Extrusion Plate – 8mm	FM2131/8	£52
Knife	FM2130	£28

Model	TS12R	TS22	Ti22R	Ti32R
Product Code	5MMTS12R	5MMTS22	5MMSTC22	5MMSTC32
Output per hour (Kg)	Up to 200	Up to 300	Up to 400	Up to 600
Extrusion Mouth (mm)	Ø 70	Ø 82	Ø 82	Ø 98
Insert Mouth (mm)	Ø 52	Ø 52	Ø 52	Ø 52
Phase (Ø)	1	1	1	1
Voltage (V)	230	230	230	230
Frequency (Hz)	50	50	50	50
Amp (A)	4.9	7.6	9.9	16.6
Power (kW / hp)	0.75 / 1.0	1.10 / 1.5	1.5 / 2.0	2.2 / 3.0
Power Connection	13amp plug	13amp plug	13amp plug	Hardwired
Turns (rpm)	200	140	140	140
Items Included	6mm extrusion plate	6mm extrusion plate	6mm extrusion plate	6mm extrusion plate
Optional Accessories	3mm extrusion plate (FM0407/3)	3mm extrusion plate (FM0410/3)	3mm extrusion plate (FM0410/3)	3mm extrusion plate (FM0413/3)
	3.5mm extrusion plate (FM0405/3.5)	3.5mm extrusion plate (FM0411/3.5)	3.5mm extrusion plate (FM0411/3.5)	3.5mm extrusion plate (FM0414/3.5)
	4.5mm extrusion plate (FM2131/4.5)	4.5mm extrusion plate (FM2219/4.5)	4.5mm extrusion plate (FM2219/4.5)	4.5mm extrusion plate (FM0502/4.5)
	6mm extrusion plate (FM2131/6)	6mm extrusion plate (FM2219/6)	6mm extrusion plate (FM2219/6)	6mm extrusion plate (FM0502/6)
	8mm extrusion plate (FM2131/8)	8mm extrusion plate (FM2219/8)	8mm extrusion plate (FM2219/8)	8mm extrusion plate (FM0502/8)
	Knife (FM2130)	Knife (FM2218)	Knife (FM2218)	Knife (FM0503)
Overall Dimensions D x W x H (mm)	370 x 220 x 440	440 x 240 x 510	450 x 260 x 530	475 x 300 x 560
Net Weight (Kg)	19	24	32	52
Packed Dimensions D x W x H (mm)	440 x 250 x 440	480 x 300 x 510	590 x 370 x 550	620 x 430 x 650
Packed Weight (Kg)	21	26.5	35	55
Volume (m3)	0.073	0.073	0.12	0.173
Warranty	1 year	1 year	1 year	1 year
