MP80PL Mixer

Features

Heavy duty 80ltr, floor standing, belt driven, planetary mixer
Particularly suitable for bakeries, hotels, restaurants, canteens etc
Easy to operate
Planetary mixing action ensures perfect results
High torque motor allows mixing of stiffer doughs and larger batches
4 fixed speeds: 110, 161, 195 and 286 rpm
Easy speed-shifting
Timer
Emergency stop button
Interlocking bowl guard
Dual bowl clamps to lock bowl down
Bowl power lift
Stainless steel safety guard with automatic shut-off when guard is opened at any speed

Resettable thermal overload protection (NVR device)
Long lasting lubricant providing abrasion resistant transmission
Transmission gears and shaft are made of heat treated, hardened steel
Heavy duty, cast iron frame
Non-slip rubber feet (not shown in image)
Quiet operation
Needs to be hard wired into an isolator
Industry standard #12 attachment hub
Supplied with bowl, beater, whisk, dough hook and bowl trolley
UKCA & CE approved
Covered by Metcalfe 3 year warranty (1st year parts and labour, 2nd and 3rd years parts only) and full after sales service
Note: this is a special order item

Specification

Capacity Chart

Comparison

Heavy & Extra Heavy Duty Mixer Comparison

Model	MP20	MP20 2-in-1 Package	MP30	MP30	MP40	MP40	MP60	MP80PL
Product Code	5MP20	5MP20-PACKAGE	5MP30-1PH	5MP30-3PH	5MP40-1PH	5MP40-3PH	5MP60-3PH	5MP80-3PH
Bowl Capacity (l)	20	20	30	30	40	40	60	80
Duty	Heavy duty	Heavy duty	Extra heavy duty	Extra heavy duty	Extra heavy duty	Extra heavy duty	Extra heavy duty	Extra heavy duty
Speed (rpm)	3 fixed speeds 140 / 260 / 473	3 fixed speeds 140 / 260 / 473	3 fixed speeds 125 / 232 / 423	3 fixed speeds 125 / 232 / 423	3 fixed speeds 95 / 195 / 356	3 fixed speeds 95 / 195 / 356	4 fixed speeds 84 / 148 / 248 / 436	4 fixed speeds 110 / 161 / 195 / 286
Belt or Gear Driven	Gear driven	Gear driven	Gear driven	Gear driven	Gear driven	Gear driven	Gear driven	Belt driven
Location	Low bench	Stand (included)	Freestanding	Freestanding	Freestanding	Freestanding	Freestanding	Freestanding
Attachment Hub	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No
Timer	No	No	Yes	Yes	Yes	Yes	Yes (15 min)	Yes
Phase (Ø)	Single	Single	Single	Three	Single	Three	Three	Three
Voltage (V)	230	230	230	400	230	400	400	400
Frequency (Hz)	50	50	50	50	50	50	50	50
Current (Amp)	5.5	5.5	8	1.9	12	2.7	5.3	8.2/9.9
Power (kW / hp)	0.375 / 0.5	0.375 / 0.5	0.75/ 1	0.75 / 1	1.125 / 1.5	1.125 / 1.5	2.25 / 3	3 / 4
Power Connection	13 Amp (3 Pin Plug)	13 Amp (3 Pin Plug)	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired
Items Included	Bowl Beater Whisk Dough Hook	Bowl Beater Whisk Dough Hook Stand 10ltr reduction bowl 10ltr reduction beater 10ltr reduction whisk 10ltr reduction dough hook	Bowl Beater Whisk Dough Hook	Bowl Beater Whisk Dough Hook	Bowl Beater Whisk Dough Hook	Bowl Beater Whisk Dough Hook	Bowl Beater Whisk Dough Hook Bowl Trolley	Bowl Beater Whisk Dough Hook Bowl Trolley
Optional Accessories	Stand Trolley 10ltr reduction bowl 10ltr reduction beater 10ltr reduction whisk 10ltr reduction dough hook	Trolley	Bowl Trolley 20ltr reduction bowl 20ltr reduction beater 20ltr reduction whisk 20ltr reduction dough hook	Bowl Trolley 20ltr reduction bowl 20ltr reduction beater 20ltr reduction whisk 20ltr reduction dough hook	Bowl Trolley 20ltr reduction bowl 20ltr reduction beater 20ltr reduction whisk 20ltr reduction dough hook	Bowl Trolley 20ltr reduction bowl 20ltr reduction beater 20ltr reduction whisk 20ltr reduction dough hook	30ltr reduction bowl 30ltr reduction beater 30ltr reduction whisk 30ltr reduction dough hook	No

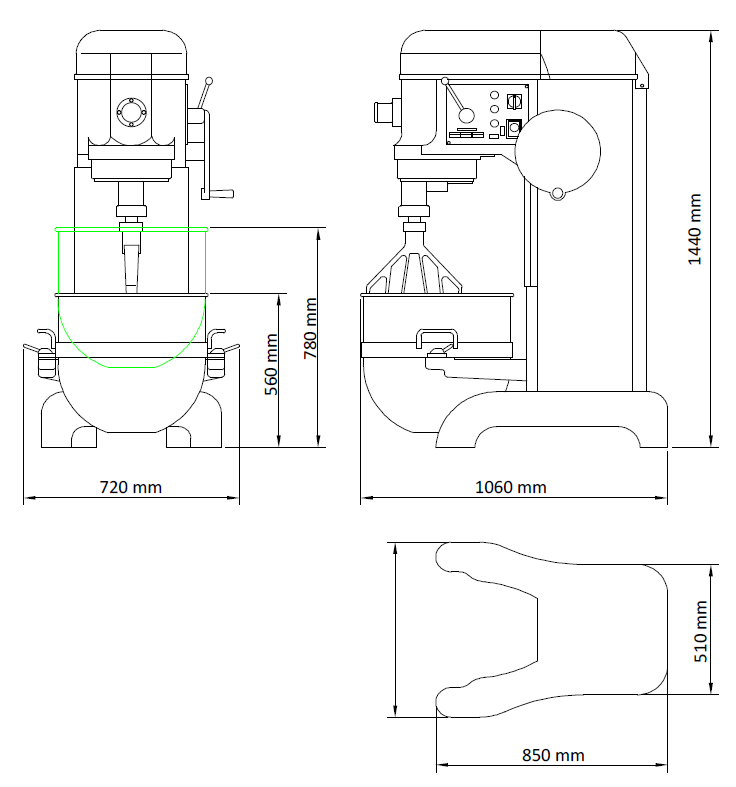

Overall Dimensions D x W x H (mm)	530 x 464 x 810	530 x 464 x 810	570 x 617 x 1105	570 x 617 x 1105	712 x 650 x 1223	712 x 650 x 1223	1039 x 782 x 1430	1060 x 720 x 1440
Net Weight (Kg)	98	115	185	185	205	205	455	600
Packed Dimensions D x W x H (mm)	620 x 520 x 1000	620 x 520 x 1600	700 x 600 x 1280	700 x 600 x 1280	820 x 720 x 1430	820 x 720 x 1430	1150 x 790 x 1680	1210 x 900 x 1710
Packed Weight (Kg)	110	127.8	197	197	217	217	480	625
Volume (m3)	0.32	0.516	0.538	0.538	0.844	0.844	1.526	1.862
Warranty	3 year	3 year	3 year	3 year	3 year	3 year	3 year	3 year
Price	£3,135	£4,073	£5,011	£5,011	£6,857	£6,857	£11,241	£21,087

Product	MP7	MP9	MP10	MP20	MP30	MP40	MP60	MP80PL	Agitator	Speed
Egg Whites	0.3 ltr	0.4 ltr	0.5 ltr	0.9 ltr	1.5 ltr	2 ltr	3 ltr	4 ltr	Whisk	All
Mayonnaise (quantity of Oil)	2 ltr	2.5 ltr	3.8 ltr	8 ltr	12 ltr	13 ltr	18 ltr	30 ltr	Whisk	All
Meringue	0.4 ltr	0.5 ltr	0.6 ltr	1.7 ltr	1 ltr	1.4 ltr	2 ltr	3 ltr	Whisk	All
Whipped Cream	1.7 ltr	1.9 ltr	2 ltr	3.5 ltr	5.7 ltr	8.5 ltr	11 ltr	15 ltr	Whisk	All
Mashed Potatoes	1.5 kg	1.8 kg	3 kg	6.5 kg	10 kg	13 kg	18 kg	27 kg	Beater	1st & 2nd
Waffle / Pancake Batter	2.8 ltr	3.5 ltr	4 ltr	7 ltr	11 ltr	15 ltr	22 ltr	30 ltr	Beater	1st & 2nd
Cake Batter	2.5 kg	3 kg	4.5 kg	9 kg	13.5 kg	20 kg	27 kg	40 kg	Beater	1st & 2nd
Sponge Cake	1.3 kg	1.5 kg	1.8 kg	6 kg	10 kg	12 kg	20 kg	36 kg	Beater	1st & 2nd
Pie Dough	1.8 kg	2.5 kg	4 kg	8 kg	12 kg	15.9 kg	22.7 kg	31 kg	Beater	1st & 2nd
Bread or Roll Dough (Light/Med, 60% AR)	1.5 kg	1.8 kg	2 kg	4 kg	7.5 kg	13.5 kg	25 kg	35 kg	Dough Hook	1st only
Bread or Roll Dough (Heavy, 55% AR)	0.9 kg	1 kg	1.7 kg	3.5 kg	6.5 kg	11 kg	22 kg	30 kg	Dough Hook	1st only
Thin Pizza Dough, Pasta, Basic Egg Noodle (40% AR) 5 min max mix time	0.9 kg	1 kg	1.5 kg	3 kg	6 kg	10 kg	20 kg	25 kg	Dough Hook	1st only
Medium Pizza Dough (50% AR)	1.4 kg	1.8 kg	2 kg	3 kg	6 kg	10 kg	20 kg	25 kg	Dough Hook	1st only
Thick Pizza Dough (60% AR)	0.9 kg	1.5 kg	2 kg	4 kg	7.5 kg	13.5 kg	25 kg	35 kg	Dough Hook	1st only
Raised Donut Dough (65% AR)	0.9 kg	1 kg	1.5 kg	3 kg	6 kg	10 kg	20 kg	25 kg	Dough Hook	1st only
Whole Wheat Dough (70% AR)	1 kg	1.5 kg	2 kg	4 kg	7.5 kg	13.5 kg	25 kg	35 kg	Dough Hook	1st only

MP80PL Mixer

Metcalfe Heavy Duty 80ltr Mixer

Heavy & Extra Heavy Duty Mixer Comparison
