Features

Providing ultimate toasting control for back-of-house kitchen staff, the Eclipse Toaster is designed for high speed bun toasting and toasting of small bread based snack items.



The machine provides precise and independent variable heat control of the top element and bottom element to enable users to produce the desired result on each side of their product. Additionally, the conveyor speed can be adjusted, between 20 seconds and 3 minutes toasting time, ensuring the perfect result tailored to the product toasted.

  • Modern brushed stainless steel construction
  • Independent and precise variable control of top and bottom element heat output
  • Solid State Electronics offer precise temperature control and greater component reliability, creating the exact toasting environment to suit many products
  • Control of conveyor belt speed
  • Two entry chutes providing different entry angles, standard wire 48° or stainless steel 25°
  • Front return or pass through chute operation
  • Adjustable angle on rear chute - 3 angles (10°, 17.5°, 25°)
  • Dura-life stainless steel elements for prolonged element life
  • Removable crumb trays for easy cleaning
  • 40mm entry chute clearance
  • Maximum toasting diameter up to: return chute 130mm, pass-through 310mm

The Eclipse is supplied with a variety of standard accessories so that the machine set-up can cater to user requirements. Two entry chute options offer different entry angles to the toasting compartment, whilst the exit can be in either of two ways:

  • Return chute operation: where the toasted product returns to the front of the machine. This is the most efficient set up as the rear of the machine is entirely closed providing good heat retention. Return chute operation is the best option for simple bun & bread toasting.
  • Pass through: where the toasted product exits the machine at the rear using an exit chute. This is ideal where a snack item with toppings such as par cooked pizza or garlic bread is being produced. Three different angles ensure a solution to user requirements.

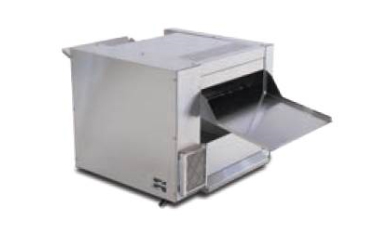

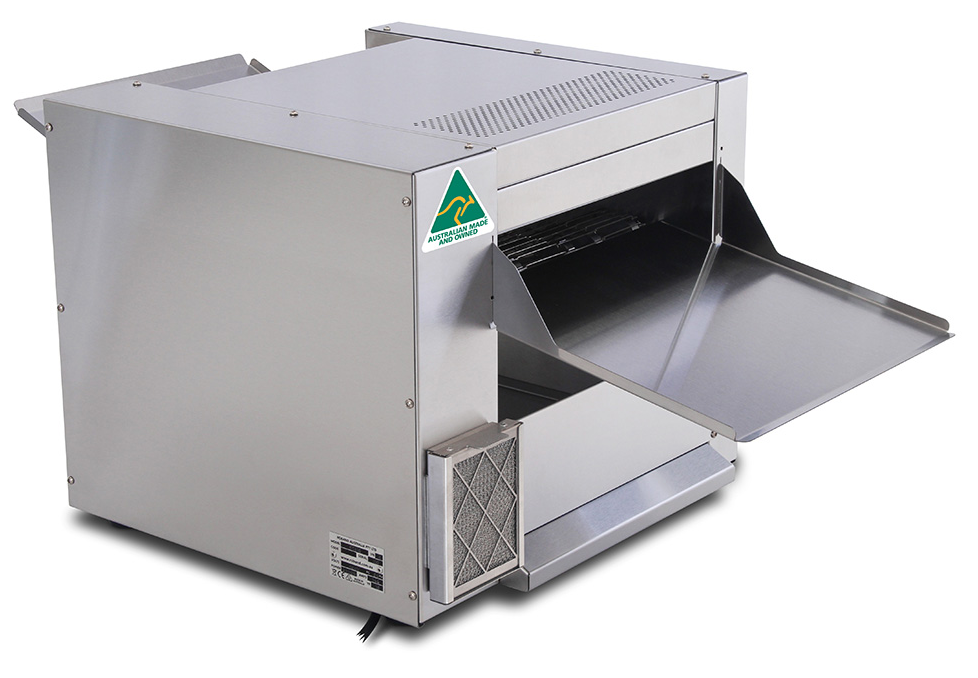

ET313 showing rear pass
through chute.

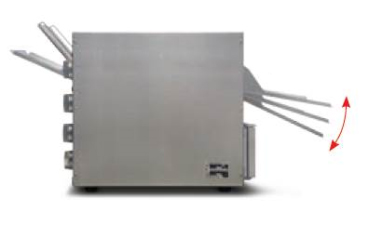

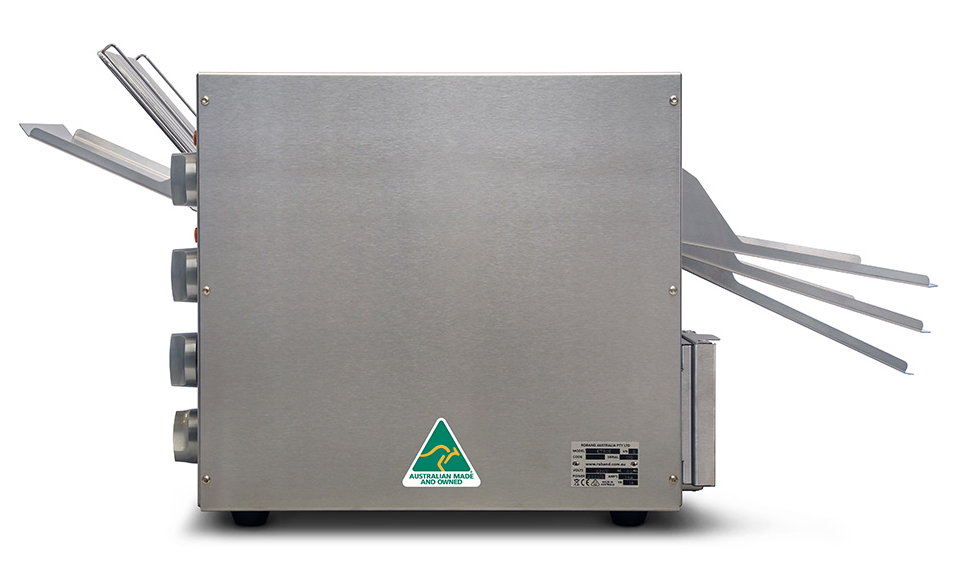

ET313 showing front chute and
rear chute at adjustable angles.

Eclipse is the ideal back-of-house machine for a variety of menu items such as, but not limited to:

PRODUCTS RETURN CHUTE
(up to 130 mm Ø)
PASS THROUGH
(up to 310 mm Ø)
Burger buns Yes Yes
Sourdough bread and rolls Yes Yes
Brioche buns Yes Yes
Bread, English breakfast muffins, crumpets Yes Yes
Bagels Yes Yes
Croissants - plain or with ham and cheese   Yes
Garlic bread and Garlic rolls   Yes
Open toasted sandwiches & flat rolls   Yes
Par cooked pizzas   Yes
