Quartz Fabricator
Quartz Heat Lamp Fabricator Assemblies

Unknown Image
Roband Heat Lamp Assemblies Roband
  • The stylish and functional Roband quartz heat lamp assemblies provide a balance of heat and light to front or back of house applications
  • They are manufactured from exclusive extruded anodised aluminium, with a number of different sizes and options available to suit various requirements. All models come with a standard mount bracket. Optional mount kit is also available
  • Designed by Roband Australia, Easy Fit Globes feature a protective quartz outer layer that encapsulates the inner globe allowing for easier handling. This secondary layer of glass also protects food from globe breakages by capturing the shards and eliminating the need for a traditional glass window in the base of the cover. Lamp replacement can now be performed without the need for an electrician and takes only seconds

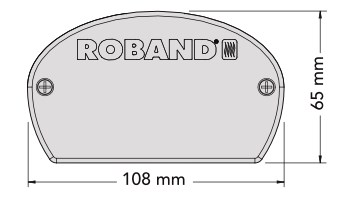

Dimensions with and without mounting bracket

Quartz and Infra-red Assembly Dimensions with mounting bracket,Quartz and Infra-red Assembly Dimensions with mounting bracketQuartz and Infra-red Assembly Dimensions


(length between centres
of each lamp)
HUQ375E 5RHUQ375E 1 lamp in body 375 1.5 n/a 350 372
HUQ825E 5RHUQ825E 2 lamps in body 825 3.0 400 700 485
HUQ1125E 5RHUQ1125E 3 lamps in body 1125 4.6 345 1050 548
HUQ1425E 5RHUQ1425E 4 lamps in body 1425 6.1 345 1400 630
HUQ1725E 5RHUQ1725E 4 lamps in body 1725 6.1 400 1400 648
HUQ2025E 5RHUQ2025E 5 lamps in body 2025 7.6 400 1750 735

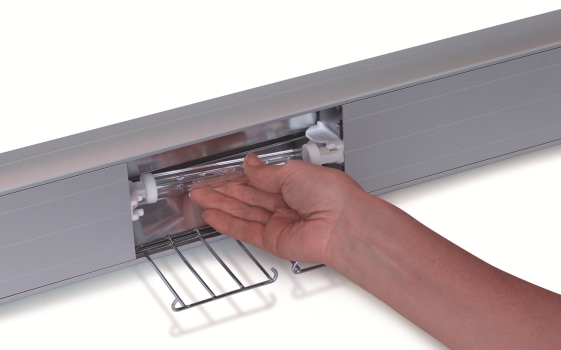

HQ900E feature with hand
Showing wire guard open for easy replacement of the globe

  • The fabricator models do not have a control box or on/off switch so they can be connected to a remote switch setup. The removal of the control box shortens the length of the lamp assembly accordingly
  • The assemblies are designed to run at 220-240V 50-60Hz and are CE approved
HQ900 mount Standard mounting bracket available

Mount Kit
HM600 5RHM600 Mount kit for all quartz and infra-red heat lamps Round 600 155

The kit includes 2 x 19mm diameter round tubes, inserts and mounting brackets, with instructions
for installation by an electrician. 600mm tubes can be cut to the desired length.
HM600 mount kit installed
Fabricator model with HM600 mount kit installed and shortened to the desired length

HM600 Mount Tubes
Heat Specifications The lamp and heating assemblies are designed to delay the loss of heat from prepared food while waiting to be taken to the table. The thermal images below provide a guide as to heat projection when mounted at various heights. Note these units are not designed to bring food up to serving temperature.

View Product Demonstration


Roband Heat & Illumination Assemblies Brochure (2020)

Roband Quartz Heat Lamp Instructions (June 2016)

Heat Specifications
