NSV350HD Slicer, Heavy Duty, Vertical

Next Product

Features

Designed for handling larger volumes than the medium duty range. Recommended for delis, restaurants, supermarkets and canteens.
Large double sliding tables with lockable, clamp grips to secure product to the slicing table to aid precision slicing
Ideal slicers for heavy cured meats including bacon, Parma ham, Serrano ham, bresaola and salami
Hollow ground chromed carbon steel 350mm blade
Powerful twin poly ‘V’ belt driven transmission gives a smooth cutting action and silent running
Easy belt adjustment
Easy set thickness control allows for precision slicing
Carriage slides on ball bearings for smooth carriage glide
Made from high polished, anodised food grade aluminium for durability and hygiene
Large base to ensure slicer has capacity to cope with large products
Ergonomic design with smooth rounded edges to allow for fast and easy cleaning and improved levels of hygiene
Fully interlocked and safe guarded for full compliance of CE legislation. This ensures all-round blade protection for ultimate user safety during cleaning
Built-in self-aligning sharpening and de-burring unit
Table/carriage, blade cover, blade and sharpening unit are detachable for easy, safe cleaning
Optional voltages and frequencies available on request
CE Approved
Covered by Metcalfe 2-year warranty (1st year parts and labour, 2nd year parts only) and full after sales service

Specification

Accessories

Comparison

Model	NSV350HD
Product Code	5S521N
Blade Size (mm)	350
Duty	Heavy Duty
Feed Type	Vertical
Suitable for Cured Meats	Yes
Cutting Capacity (mm)	● 265 □ 265 x 310
Carriage Movement (mm)	365
Max Slice Thickness (mm)	16
Slices Per Min	n/a
Phase (Ø)	Single
Voltage (V)	220
Frequency (Hz)	50
Current (Amp)	1.68
Power (kW)	0.37
Power Connection	13 Amp plug
Items Included	Knife Remover Screwdriver Tasteless Oil

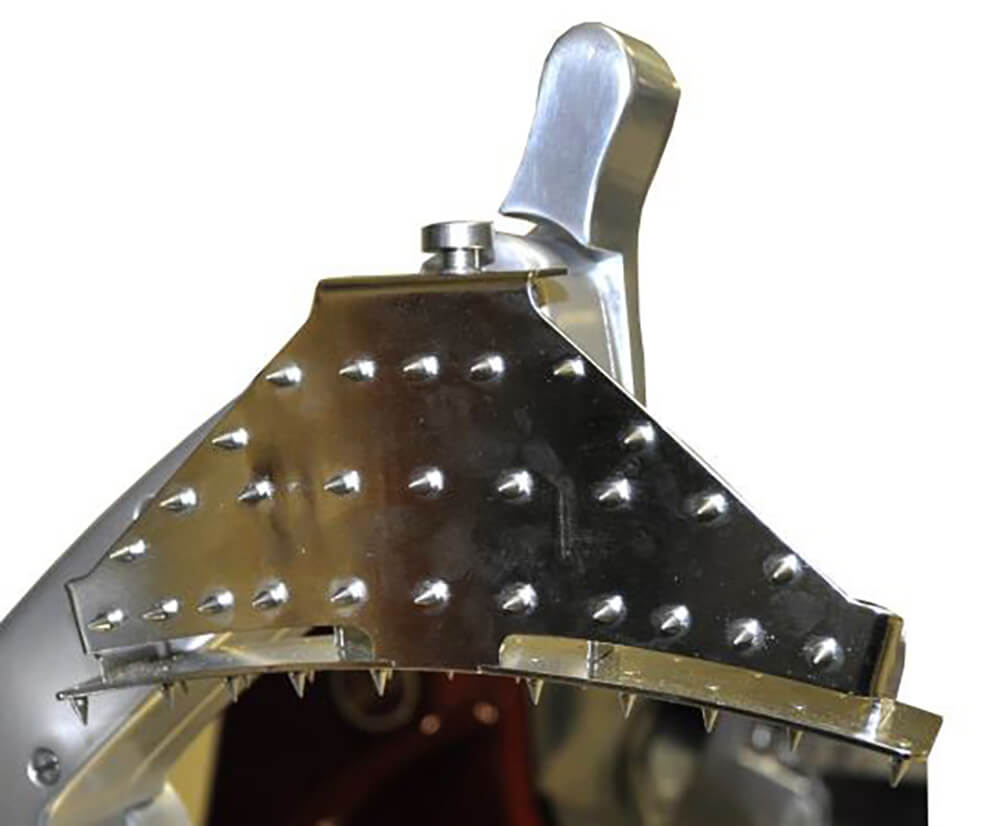

Optional Accessories	Stainless Steel Knife Remover Special Stainless Steel Handgrip Teflon Coated Parts (Blade Cover, Gauge Plate, Blade) Aluminium Knobs Special Arm (protected) Plastic Cover – Small Serrated Blade Painting Customisation

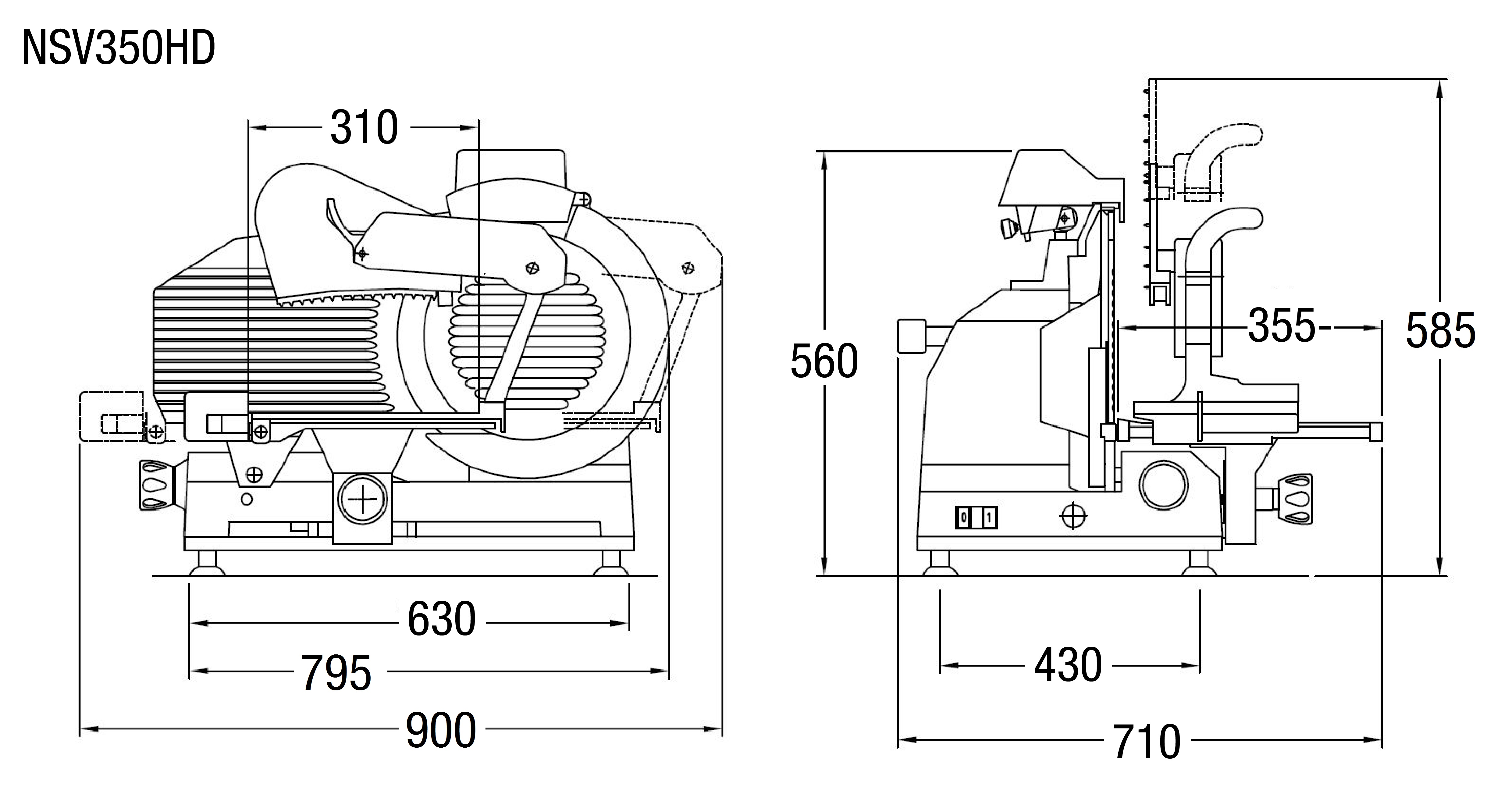

Max Overall Dimensions D x W x H (mm)	710 x 900 x 585
Net Weight (Kg)	47
Packed Dimensions D x W x H (mm)	790 x 880 x 800
Packed Weight (Kg)	54
Volume (m3)	0.556
Warranty	2 year
Price	£3,887

Model	NSV250	NSV300	NSV350	NSV300HD	NSV350HD
Product Code	5S517N	5S518N	5S519N	5S520N	5S521N
Blade Size (mm)	250	300	350	300	350
Duty	Medium Duty	Medium Duty	Medium Duty	Heavy Duty	Heavy Duty
Feed Type	Vertical	Vertical	Vertical	Vertical	Vertical
Suitable for Cured Meats	No	No	No	Yes	Yes
Cutting Capacity (mm)	● 185 □ 185 x 230	● 205 □ 205 x 230	● 260 □ 260 x 310	● 210 □ 210 x 265	● 265 □ 265 x 310
Carriage Movement (mm)	275	275	365	300	365
Max Slice Thickness (mm)	13	13	16	12	16
Slices Per Min	n/a	n/a	n/a	n/a	n/a
Phase (Ø)	Single	Single	Single	Single	Single
Voltage (V)	220	220	220	220	220
Frequency (Hz)	50	50	50	50	50
Current (Amp)	0.82	0.82	1.68	1.1	1.68
Power (kW)	0.18	0.18	0.37	0.242	0.37
Power Connection	13 Amp plug	13 Amp plug	13 Amp plug	13 Amp plug	13 Amp plug
Items Included	Knife Remover Screwdriver Tasteless Oil	Knife Remover Screwdriver Tasteless Oil	Knife Remover Screwdriver Tasteless Oil	Knife Remover Screwdriver Tasteless Oil	Knife Remover Screwdriver Tasteless Oil
Max Overall Dimensions D x W x H (mm)	640 x 710 x 490	640 x 710 x 490	790 x 890 x 640	680 x 780 x 595	710 x 900 x 585
Net Weight (Kg)	21	23	47	32	47
Packed Dimensions D x W x H (mm)	530 x 660 x 540	530 x 660 x 540		730 x 860 x 800	790 x 880 x 800
Packed Weight (Kg)	24	26	55	37.5	54
Volume (m3)	0.189	0.189	0.46	0.502	0.556
Warranty	2 year	2 year	2 year	2 year	2 year
Price	£1,614	£2,021	£3,674	£2,921	£3,887

NSV350HD Slicer
